Hydraulic Tube Assembly Fabrication Services

J & D Tube Benders, Inc. is a full line supplier of hydraulic tube assemblies and exhaust or return manifolds.

We have a large inventory of standard hydraulic end fittings and tubing, including high-pressure alloys. We can reverse engineer obsolete or discontinued parts while offering short lead-times (1-2 days (in some cases for machine down situations) on most parts) and competitive pricing. Whatever your materials, shapes or dimensions, J & D Tube Benders can tackle nearly every bending application you require with machinery and tooling to handle all of your hydraulic tube fabrication and assembly needs.

Hydraulic Tube Assembly Fabrication Services in Wisconsin

Hydraulic Tube Pressure Manifold with JIC Female Ends

180 Degree Mandrel Bent Tube Assembly with JIC Flared End and Beaded End to Accept Hydraulic Hose

Multiple CNC Bent Tube Assembly, 3/8 With JIC Nut & Sleeves with Yellow Dichromate Plating

CNC Bent Tube Assembly with O-Ring Face Seal 90 Degree Brazed Elbow

Large Inventory of JIC 37 Degree Nut & Sleeves for use in Hydraulic Tube Assemblies

CNC Tube Bending including Mandrel Bent Tubes

Mulitple Radius Bent Part

Non Contact Romer CMM for Accurate Measurement of Bent Tube Assemblies

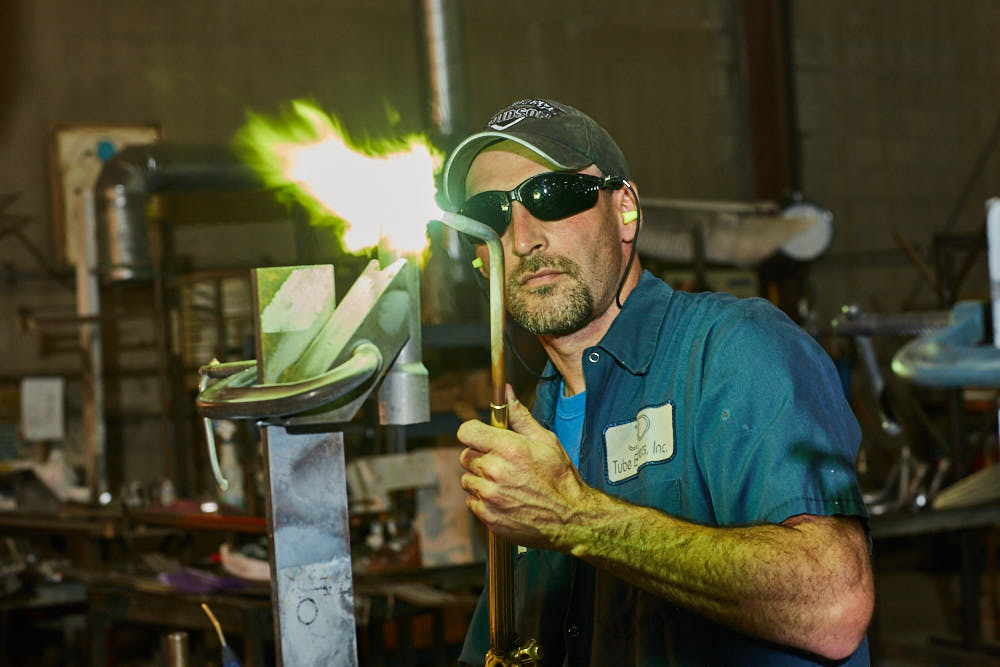

Torch Brazing of Hydraulic Tube Fittings for a Bent Tube Assembly

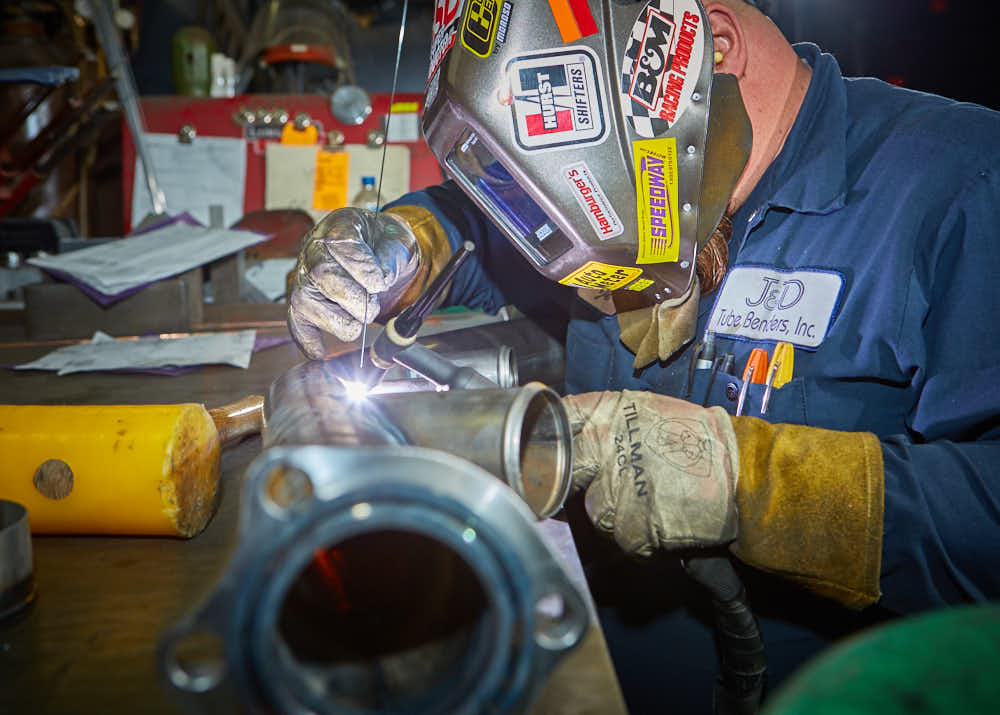

MIG Welding of Complete Hydraulic Tube Assembly

CNC Bent Tube Assembly with JIC 37 Degree Nut & Sleeves with Yellow Dichromate Plating

SAE 90 Degree Elbow

CNC Bent Tube Assembly with Brazed JIC Ends and Powder Coated

Whether you require a large volume production order or a prototype part, Request Information

Custom Precision Pipe & Tube Bending Capabilities
Process Capabilities	1/4" to 5" Full CNC Tube Bending 1D Bending Hand Bending and CNC Bending Roll Forming of Rings and Arches Pressure Testing Coils Cutting Deburring End Reductions and Expansions Flattening Beading Flaring Par Flanging Welding Brazing
Materials	Aluminum (All Grades) Carbon Steel (All Grades) Stainless Steel (All Grades)
Tube & Pipe Shapes Available	Pipe Rectangular Tube Round Tube Solid Round Rod Square Tube
Workpiece Capacity	We can handle any sized welding or brazing project. We work with round, rectangular and square tubing as well as solid round rods. Our welders can handle assemblies consisting of 1/16" diameter up to 5" and greater in diameter.
Typical Runs	Due to our flexible manufacturing processes, we are able to provide competitive prices and short lead times on low and high volume orders.
Facility Certifications	ISO 9001 Certified AWS Certified Welders
Industries Served	Agricultural Appliance Automotive Exercise Furniture Government Trucks Health Heavy Construction Equipment Lawn and Garden Logging Marine Sporting Goods

Secondary Capabilities
Prototype Parts	J & D Tube Benders provides prototype parts to our customers with competitively priced parts and short lead times. We are able to work from samples, rough sketches, or finished engineering drawings. We will fabricate parts per print when possible or supply a marked up copy of any necessary deviations for customer approval prior to fabrication.
Powder Coating & Plating	J & D Tube Benders is fortunate to be located in an area that has several powder paint and plating companies. We are able to supply you with a finished product, ready for assembly. We have a wide variety of colors to choose from in powder coating, including: Stock Colors Black Brown Gray Yellow Custom Colors - available on customer request Color Matched Colors Carc Paint Military Colors We partner with local business to provide finished parts with the following plating options: Zinc Plating Yellow Dichromate Phosphate Coating Pre-plate material available in yellow dichromate
CAD Drafting Services	J & D Tube Benders is able to take your samples or rough sketches and provide you with a finished CAD drawing for your records. We offer complete sets of technical drawings of all parts and assemblies prior to production. When reverse engineering obsolete or broken parts, we can provide detailed plans along with your new part.
Testing	We offer pressure testing of finished parts and assemblies. Every product that leaves our facility is thoroughly inspected at all stages of production to the industry's highest standards for quality. As an ISO certified manufacturer, J & D continually strives to meet customer requirements and expectations by continually improving customer service, quality and productivity.
